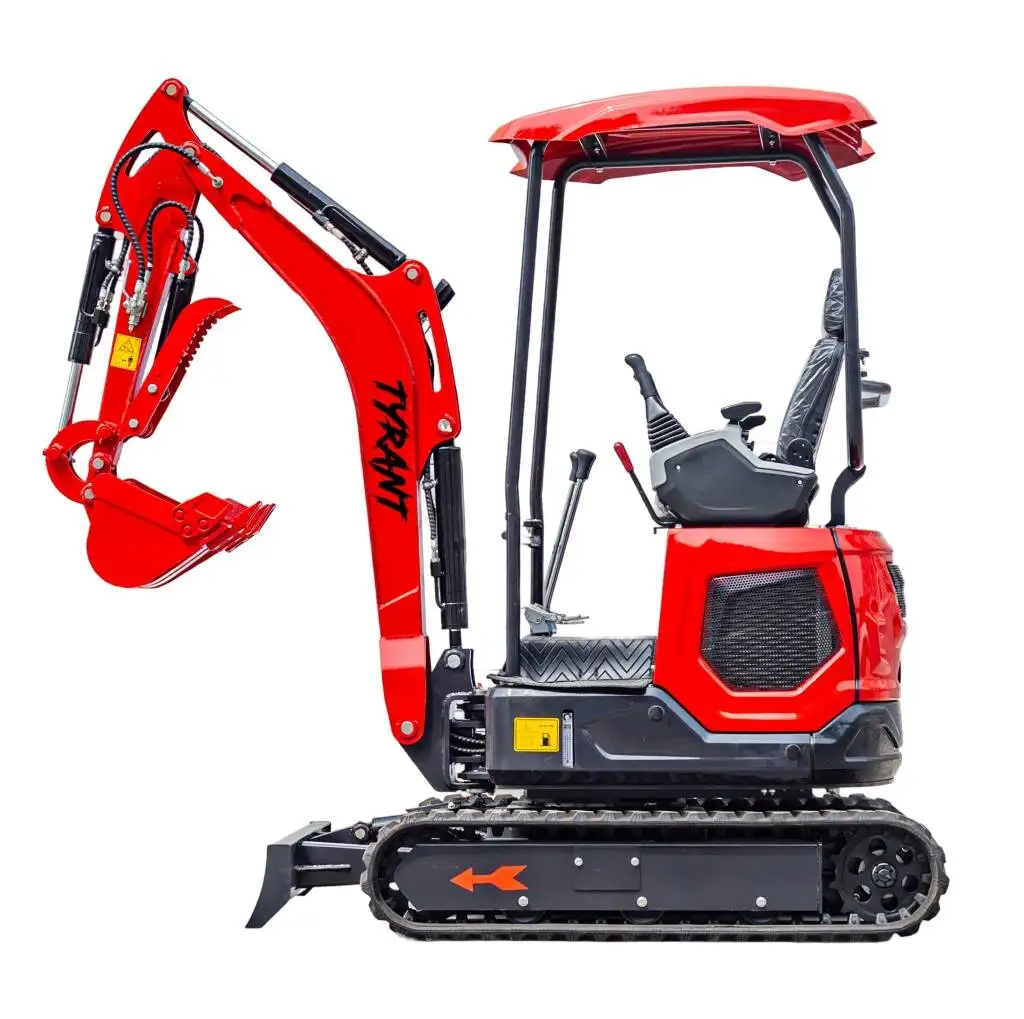

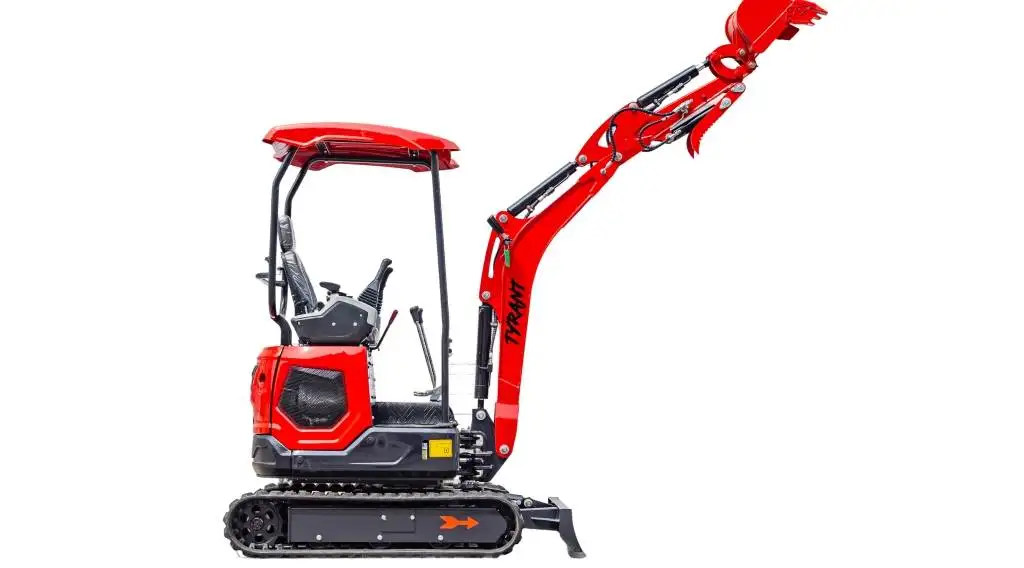

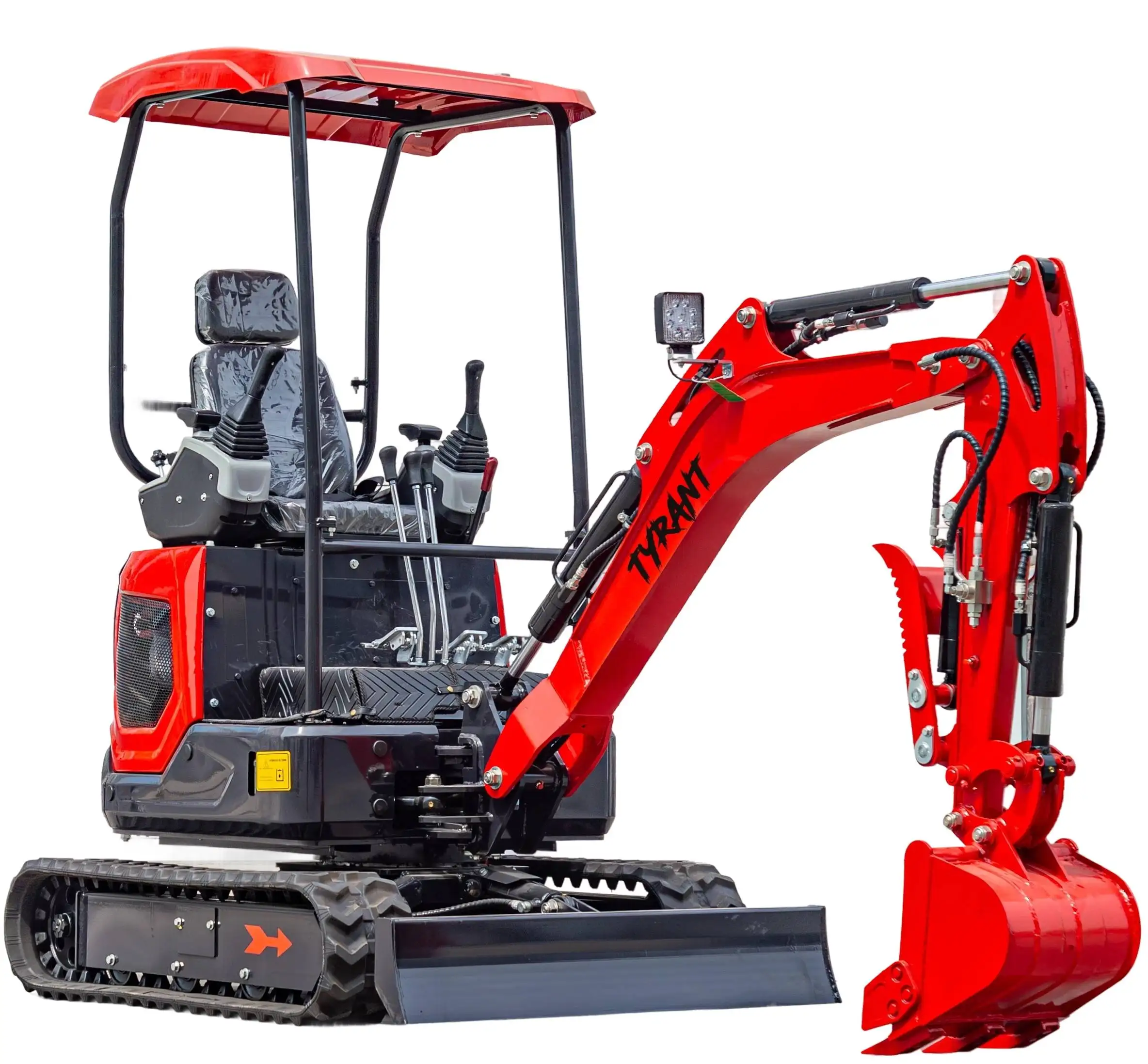

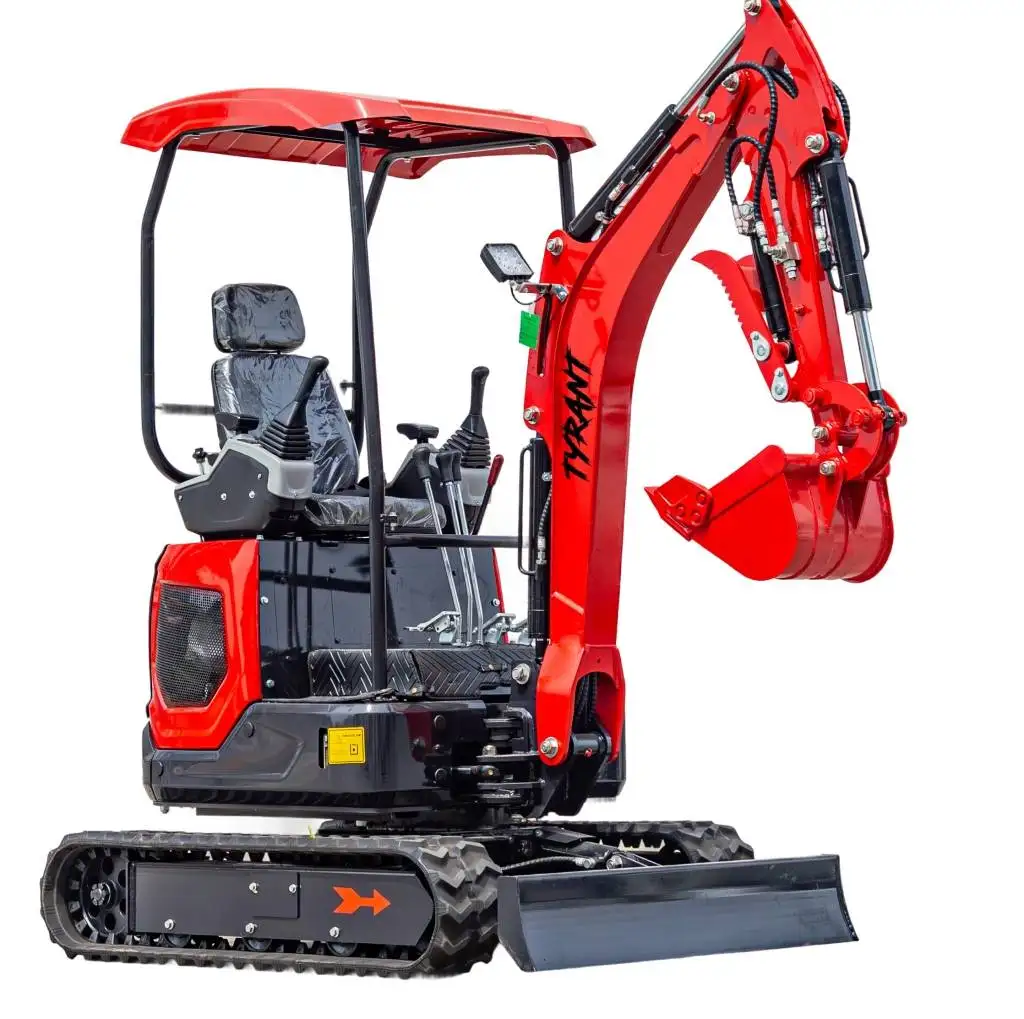

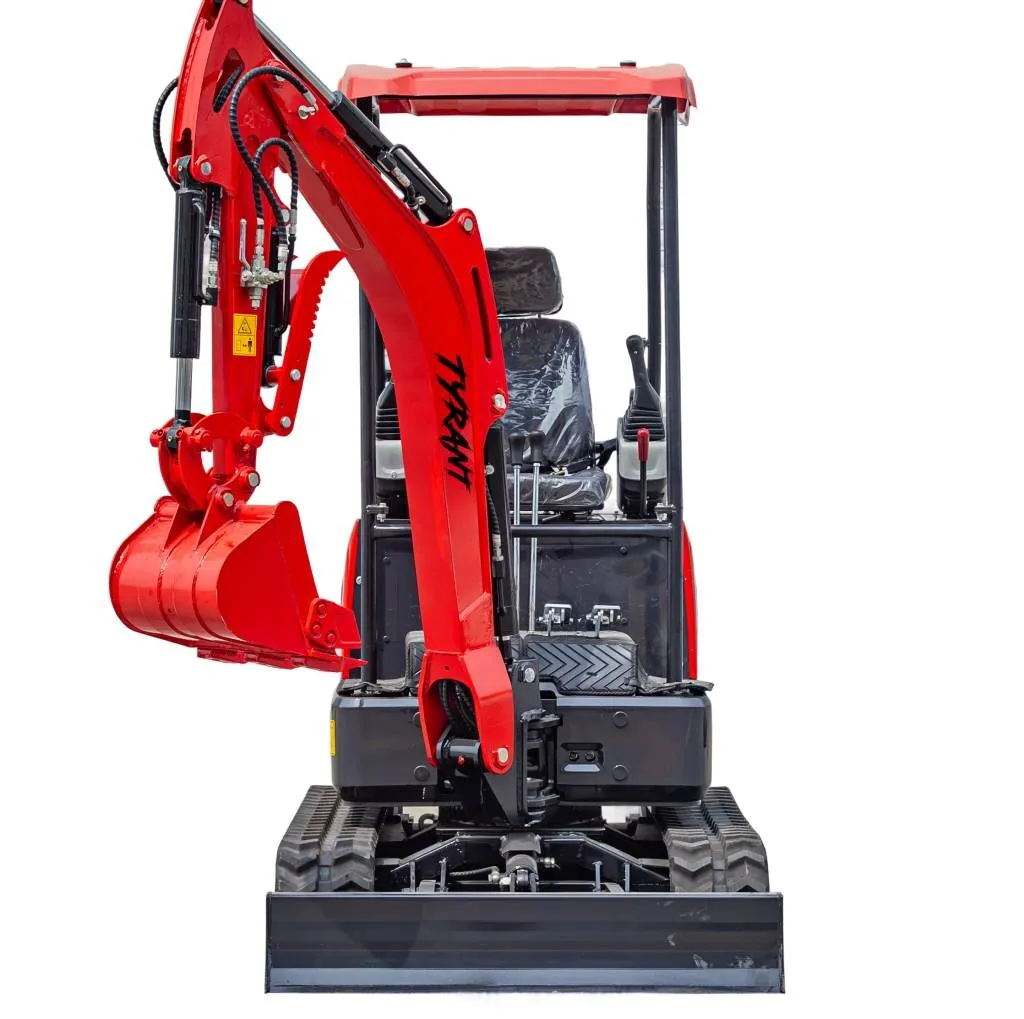

3800lbs TYRANT 17 Diesel Mini Excavator Kubota D902 Engine Side Swing w 12 attachments

Description

TYPHON: TYRANT

GTIN: 05061030741405

The TYPHON TYRANT 17 is a new compact mini excavator designed for operators who need dependable digging performance without the size and limitations of a larger machine. With an operating weight of approximately 3,800 lbs and an EPA-certified Kubota D902 diesel engine, the TYRANT 17 combines practical power with excellent maneuverability for construction, landscaping, agricultural, and utility applications.

The 16HP Kubota D902 diesel engine provides reliable performance for everyday excavation work, while the compact configuration allows the machine to operate effectively in restricted areas. With a maximum digging depth of 2,000mm (approximately 6’7″), it has the reach needed for a wide range of trenching, digging, planting, and property improvement tasks.

The TYRANT 17 also comes as a versatile attachment package, giving operators multiple tools for different jobs. The bundle includes 12 attachments in total, along with the machine, making it suitable for applications ranging from excavation and landscaping to orchard maintenance and material handling.

Included Attachments

The TYRANT 17 bundle includes:

• Quick Coupler
• 200mm Narrow Bucket
• 500mm Plain Bucket
• Rake
• Ripper
• Auger
• Grapple
• 600mm Screen Bucket
• 600mm Tilting Bucket
• Hydraulic Hammer
• Hydraulic Thumb Clip
• Standard Bucket

The hydraulic thumb clip and standard bucket are supplied installed on the excavator, bringing the complete package to 12 attachments plus the machine.

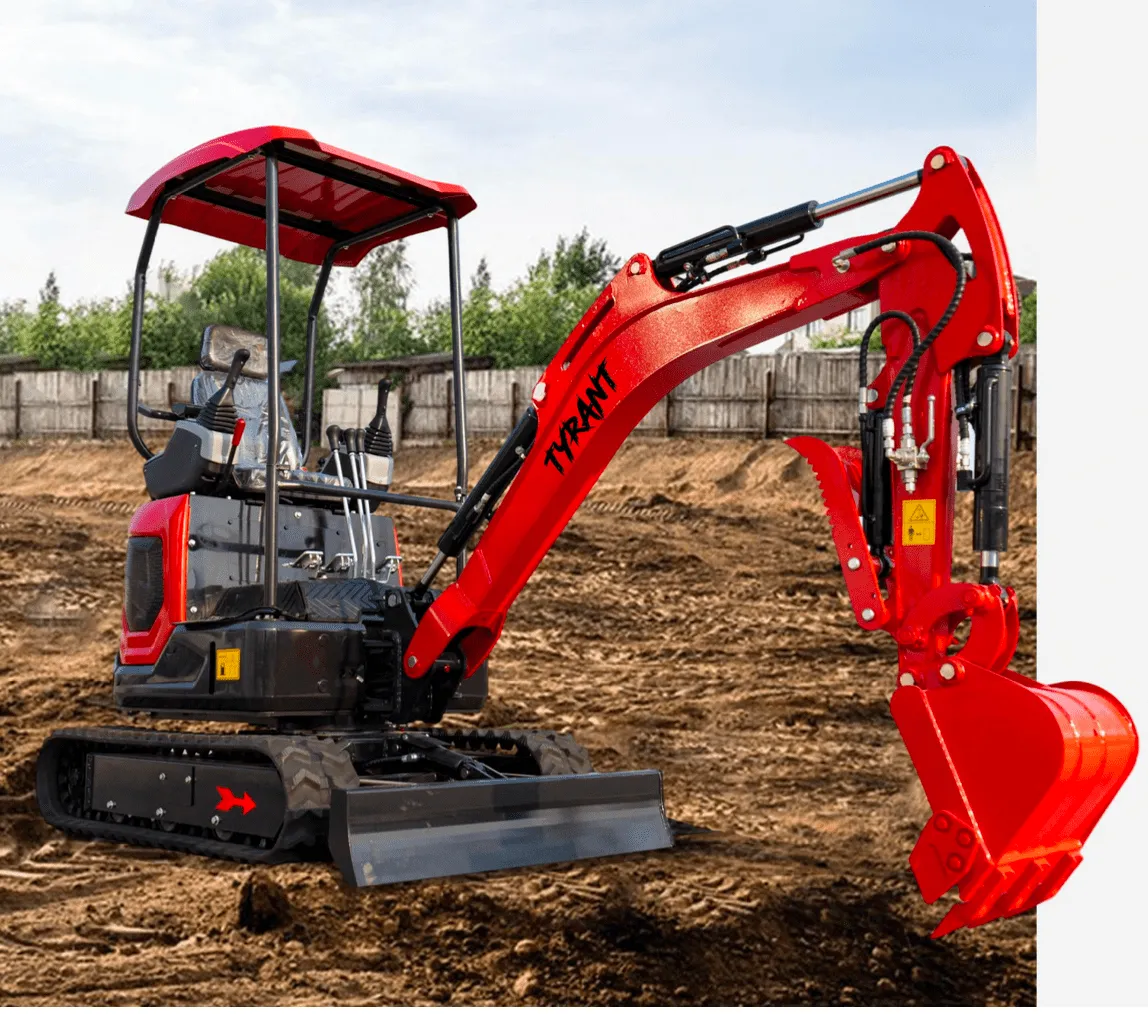

TYPHON TYRANT 17 Compact Mini Excavator

The TYPHON TYRANT 17 is built to provide a useful combination of digging capability, stability, and maneuverability. Its compact design makes it practical for jobs where access is restricted, including residential landscaping, utility work, agricultural properties, orchards, and smaller construction sites.

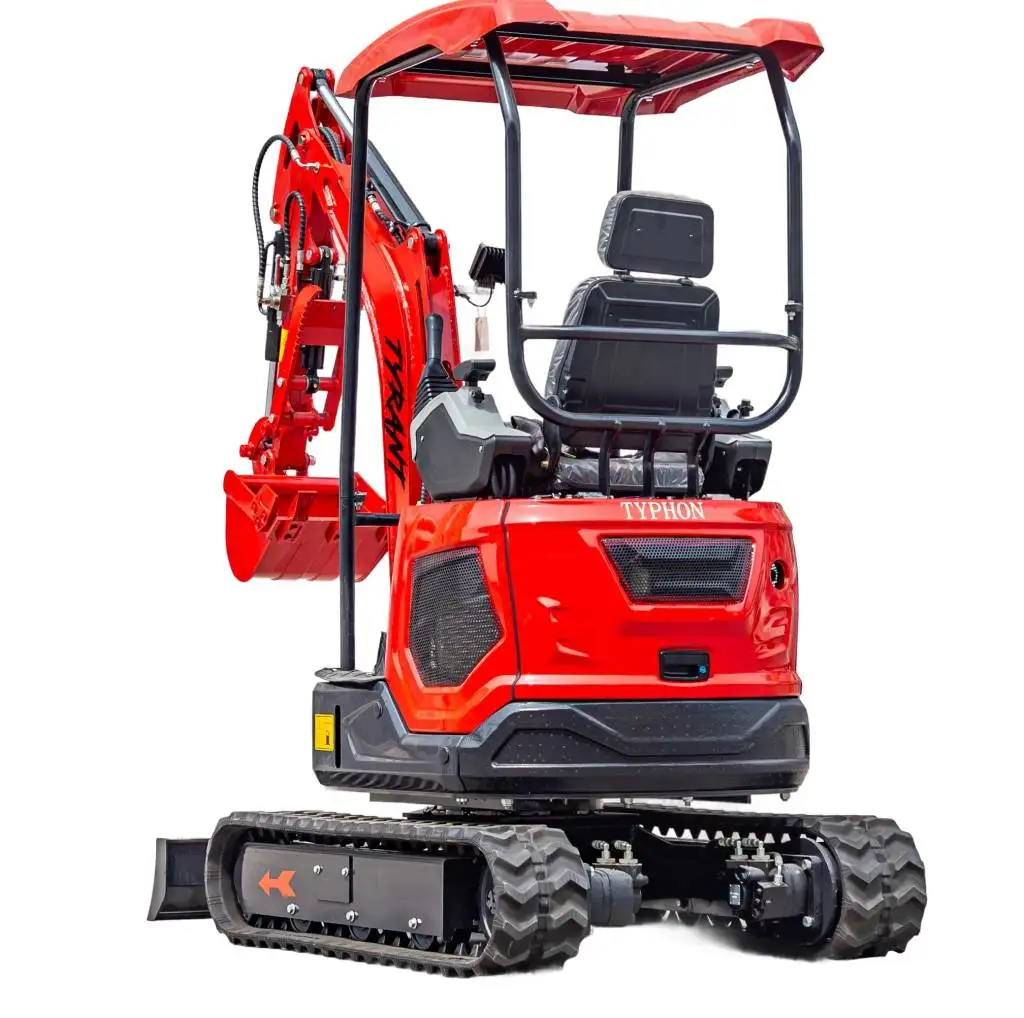

With a Zero Tail Swing (ZTS) configuration, the excavator can rotate through 360 degrees while keeping the rear of the machine close to its track footprint. This helps the operator work closer to buildings, fences, pathways, and other obstacles where conventional excavators may have limited room.

Designed for Confined Work Areas

The limited Zero Tail Swing design allows the machine to work efficiently in narrow locations while reducing the amount of clearance required around the rear of the excavator.

The 1100mm undercarriage width provides a stable platform when working across uneven surfaces. Combined with 230mm tracks, the machine distributes its weight across the ground while maintaining the maneuverability expected from a compact excavator.

This configuration makes the TYRANT 17 suitable for:

• Landscaping and residential projects
• Orchard and agricultural work
• Trenching and utility installation
• Small construction projects
• Planting and fertilizer applications
• Weeding and property maintenance
• Excavation in restricted-access areas

Kubota Diesel Power for Everyday Work

The TYRANT 17 is equipped with an EPA-certified Kubota D902 diesel engine producing 11.8kW / 16HP. The engine provides dependable power for excavation, trenching, lifting, and attachment operation while meeting applicable U.S. EPA requirements.

For extended operation, the excavator features a split hydraulic oil cooling system designed to improve heat dissipation. Separating the engine and hydraulic cooling circuits helps manage operating temperatures and supports consistent performance during longer work cycles.

Pilot Hydraulic Controls for Precise Operation

The hydraulic pilot operating system provides smoother and more precise machine control while reducing the effort required at the control levers. This makes it easier for the operator to manage digging, boom movement, bucket positioning, and attachment functions.

An ergonomic operator area with a comfortable seat and headrest is designed to provide additional support during longer working sessions. The upgraded ceiling also adds to the operator-focused design.

Flexible Attachment System

One of the major advantages of the TYRANT 17 is its ability to handle different tasks using a wide selection of included attachments.

The supplied hydraulic thumb and 415mm bucket configuration gives the excavator added versatility for handling materials, while the additional buckets and tools allow operators to adapt the machine to different applications.

Whether the job requires narrow trenching, breaking hard material, digging, screening, grabbing objects, drilling, or general excavation, the included attachment package gives the TYRANT 17 a broad range of capabilities.

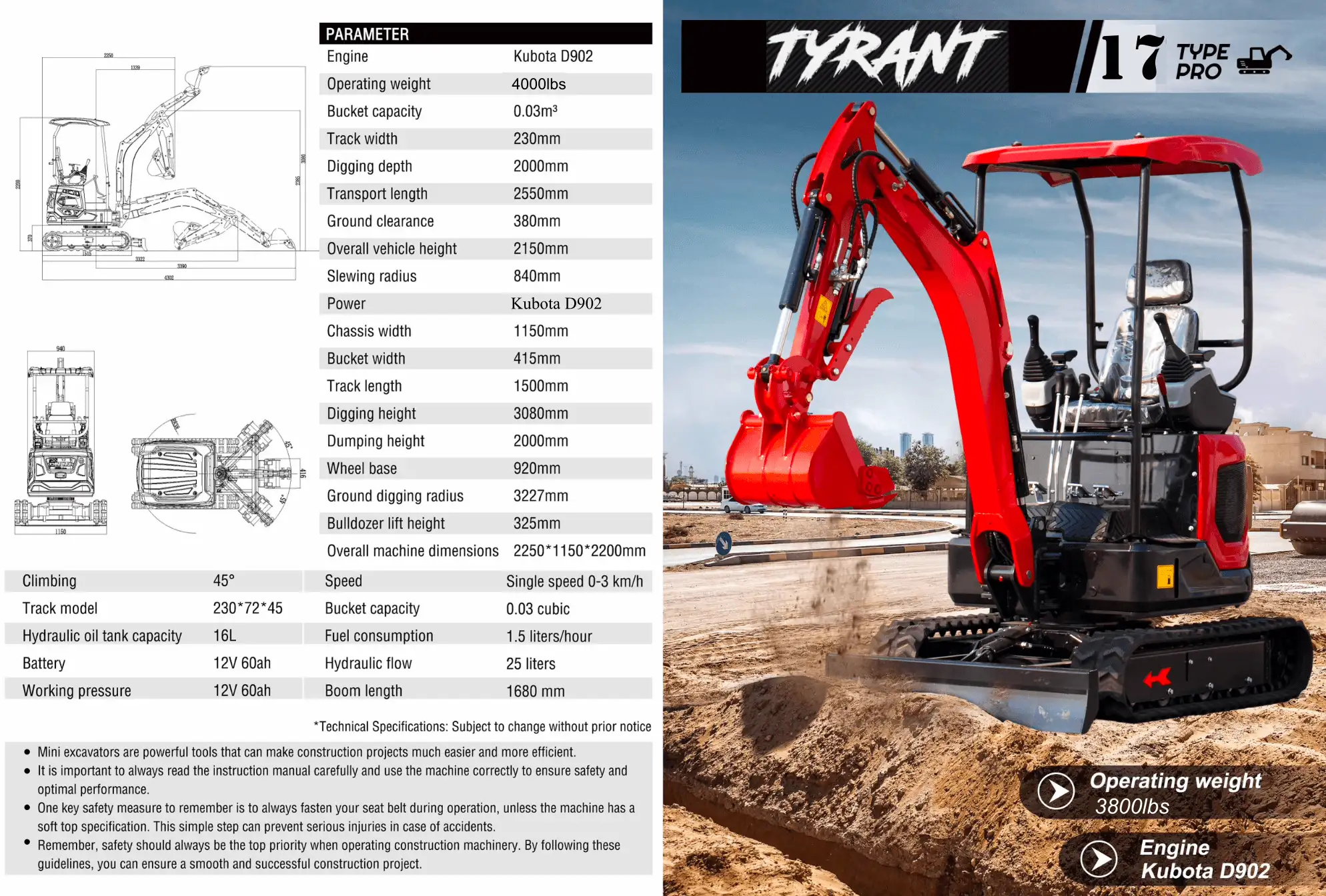

Performance Specifications

• Engine: Kubota D902 Diesel
• Engine Power: 11.8kW / 16HP
• EPA Certification: EPA Certified
• Operating Weight: 3800 lbs
• Undercarriage Width: 1100mm
• Track Width: 230mm
• Maximum Digging Height: 3080mm
• Maximum Digging Depth: 2000mm
• Turning Radius: 840mm
• Travel Speed: 0–3 km/h
• Swing: 360 Degrees
• Boom Swing: 45° Left / 45° Right

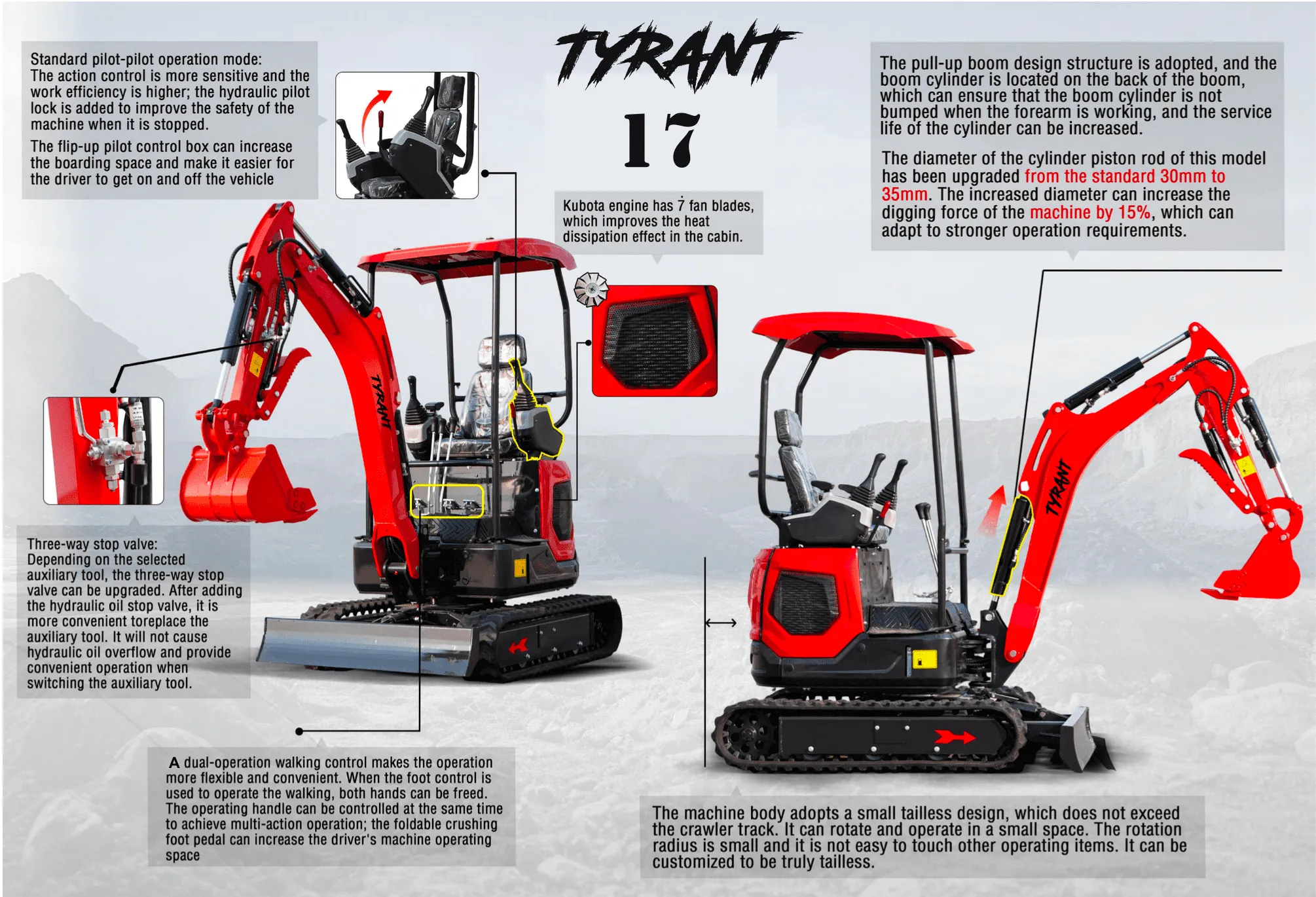

Key Features

EPA-Certified Kubota D902 Diesel Engine
The 16HP Kubota diesel engine provides dependable power for everyday excavation and attachment work.

3800 lb Operating Weight
The machine offers a balance between stability and transport-friendly compact dimensions.

Hydraulic Pilot Operating System
Pilot controls provide smoother operation and more precise response with reduced lever effort.

1100mm Wide Undercarriage
The wider undercarriage helps improve stability when working on uneven or challenging terrain.

Zero Tail Swing Design
The ZTS configuration allows the machine to rotate while keeping the rear within or close to the track footprint, making it practical for restricted work areas.

Split Hydraulic Oil Cooling System
The separated cooling arrangement is designed to improve heat management and maintain hydraulic performance during extended operation.

Hydraulic Valve System
The hydraulic system incorporates a valve designed to help control and minimize hydraulic oil leakage.

Comfortable Operator Station
A supported seat with headrest and upgraded overhead protection provides a more comfortable operating environment.

415mm Bucket with Hydraulic Thumb
The included bucket and hydraulic thumb combination adds flexibility for digging and material handling.

Protective Oil-Tank Board
A protective board helps shield the oil tank during machine operation.

360-Degree Swing
The full swing capability allows the operator to work efficiently around the machine without constantly repositioning the excavator.

Boom Side Swing
The boom can swing 45° to the left and 45° to the right, providing additional flexibility when digging alongside obstacles or working in confined areas.

Built for Versatile Compact Excavation

From residential landscaping and utility trenching to agricultural and orchard work, the TYPHON TYRANT 17 is designed to handle a variety of jobs with one compact machine. Its diesel power, pilot hydraulics, Zero Tail Swing configuration, stable undercarriage, and extensive attachment package make it adaptable to changing job requirements.

With its 3,800 lb operating weight, 16HP Kubota D902 engine, 360-degree swing, side-swinging boom, and 12 included attachments, the TYRANT 17 provides a practical combination of versatility and maneuverability for contractors, farmers, landscapers, and property owners.
